Material DiversoModulo controle rotaçao motor DC PWM painel LED 6V - 30V 5AAo comprar este produto pode ganhar até 1 ponto de fidelização. Seu carrinho totalizará 1 ponto que podem ser convertidos num vale de desconto de 0,20 €.
descriçao do fabricante:

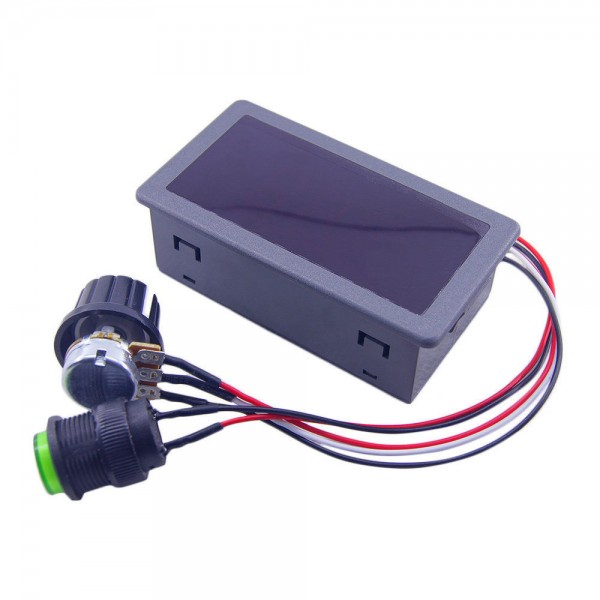

DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM).

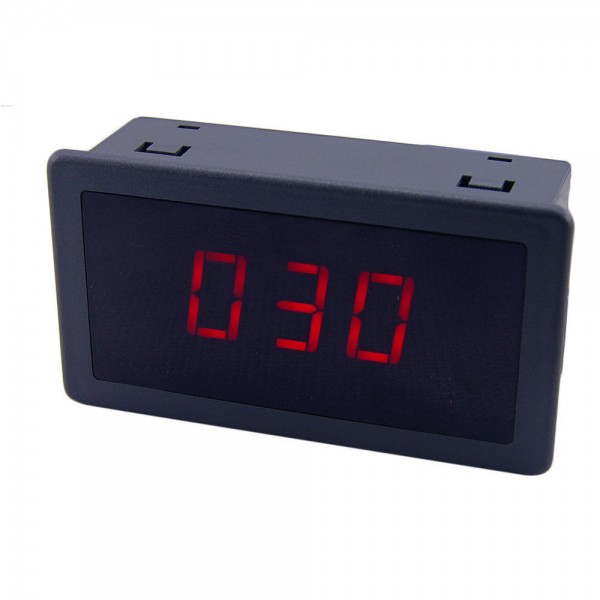

Large 0.56 inch 3-digit LED display numbers allow viewing under the most adverse conditions.
Incorporate a push key. Push closed, and then push open.
The display range of 3-digit LED display is ¡°000¡±-¡°100¡±. ( For example, displayed ¡°60¡±, it means that the PWM output duty cycle is 60% )
Specifications:
Condition:brand new
Input supply voltage range : 6V-30V DC
PWM frequency :16kHz
Adjustable speed range : 0%-100%.
Suitable for : the DC motor (or DC load) within 5A, Peak current 8A.
Item size: 80x40x10mm
Net weight: 60g
Package includes:
1pc PWM Speed Controller
WARNING:
Before you attempting to wire the controller, make sure power is off.
DO NOT REVERSE POSTIVE AND NEGATIVE POWER LOADS.THIS WILLDAMAGE THE CONTROLLER.
TO CHANGE MOTOR DIRECTION, INTERCHANGE THE POSITIVE AND NEGATIVE WIRES OF MOTOR.
Operating instruction:

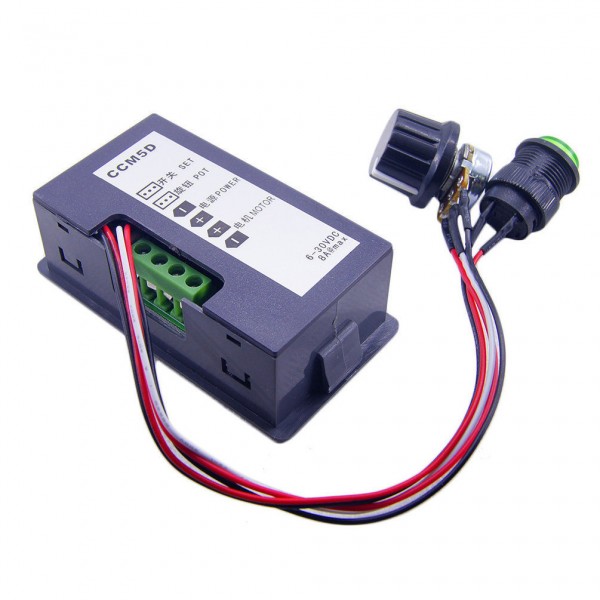

1. Connect wires refer to the ¡°wiring diagram¡±.

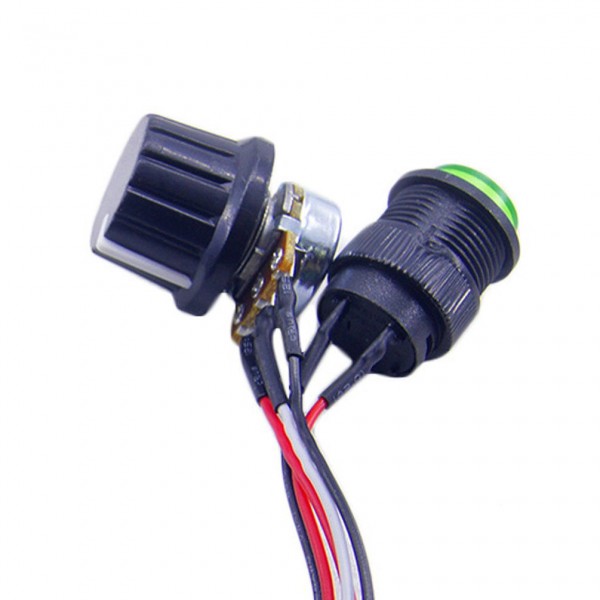

2. Turn on the power, and adjust the potentiometer.
3. The LED display displays the PWM output duty cycle.
4. Push the key, the controller closed, push it again, the controller open.
Verifique com imagens e referências.
Qualquer esclarecimento adicional, consulte-nos.
