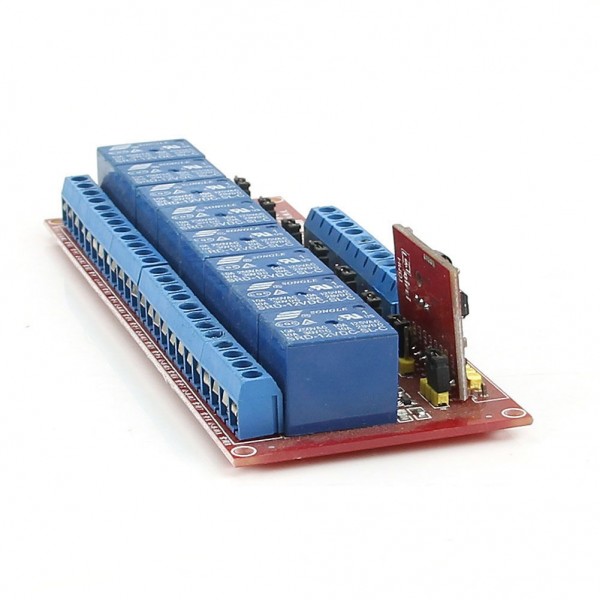

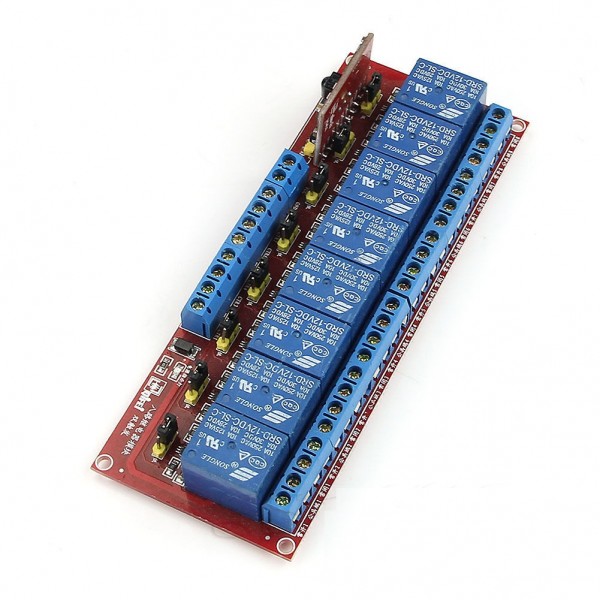

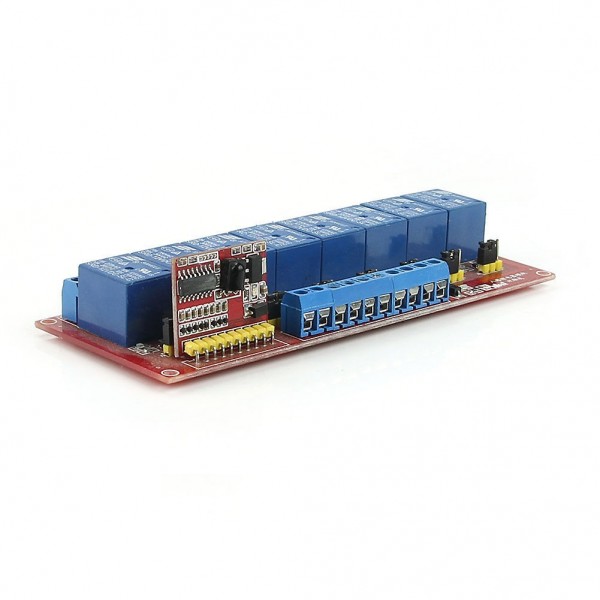

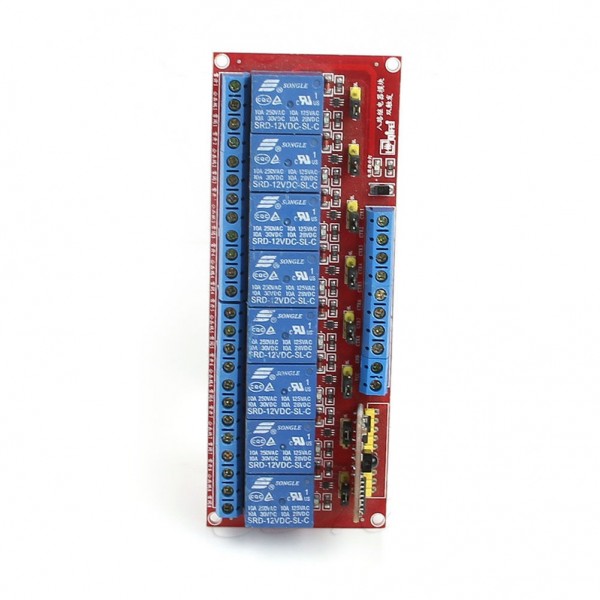

Material DiversoModulo 8 canais rele controlo remoto IR
Ao comprar este produto pode ganhar até 1 ponto de fidelização. Seu carrinho totalizará 1 ponto que podem ser convertidos num vale de desconto de 0,20 €.
Specs do fabricante:
The relay contact capacity : AC250V 10A DC30V 10A;

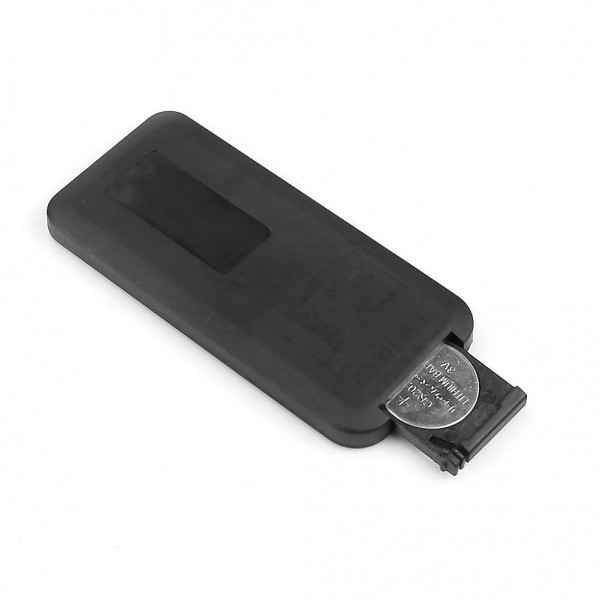

Power supply: Button Battery( Included)
Board Size: (L*W*H)13.50*5.00*2.10cm/5.31"*1.97"*0.83"
The remote control Size:(L*W*H)8.50*4.00*0.60cm/3.35"*1.57"*0.24"
Quantity:1Set
Product wiring as follows :
VCC: input power supply terminal end
GND: input power is grounded end
CTR1-CTR8 trigger signal input terminal , in any way effective ( by a jumper setting can)

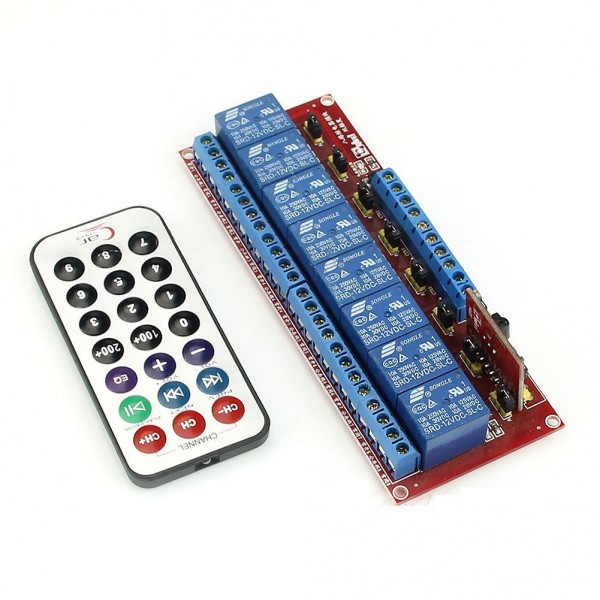

The remote control uses:
Only the numeric keys work, 1-8 keys,Corresponding to the corresponding relay channels 1-8, after pressed the first time relay start work ,After disconnecting relay pressed again.
After the 0 button is pressed, all start to working,
After the 9 button is pressed, all stop working,
Verifique com imagens e referências.
Qualquer esclarecimento adicional, consulte-nos.
