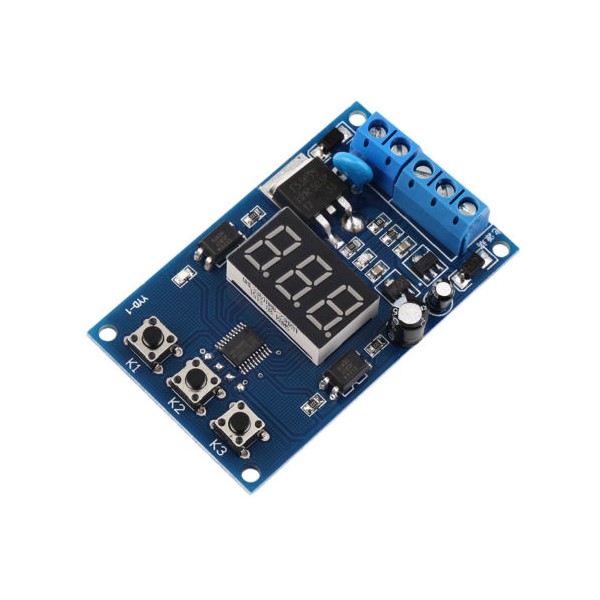

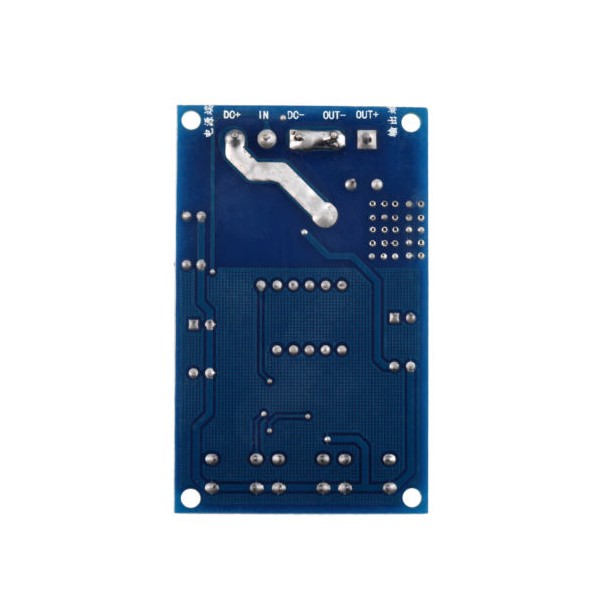

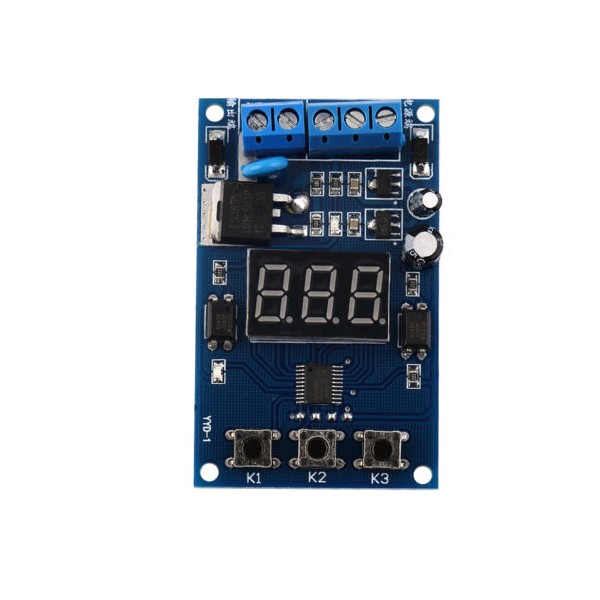

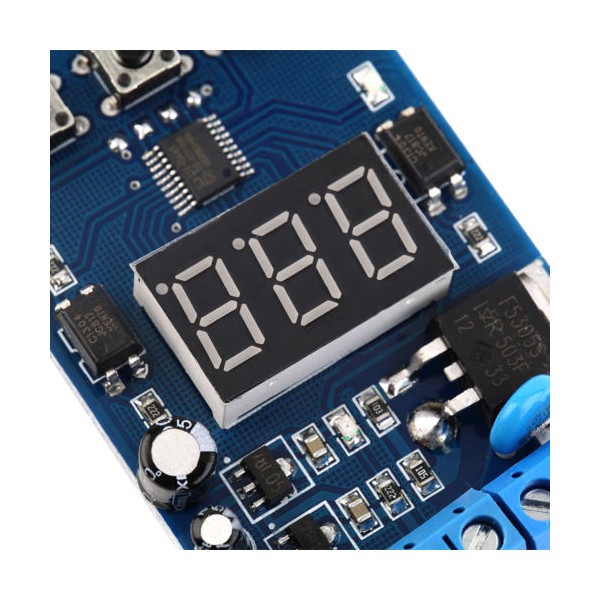

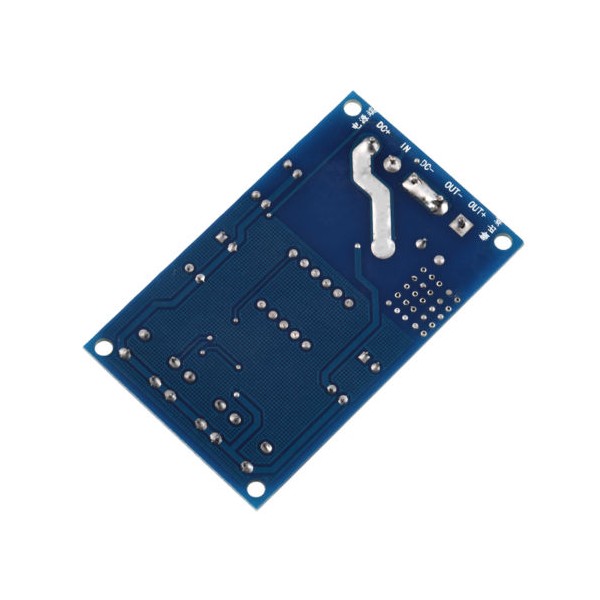

Material DiversoModulo Temporizador programavel Cíclico MOSFET driver DC-DCModulo Temporizador Cíclico Ajustável com Driver Mosfet
Programavel
Ao comprar este produto pode ganhar até 1 ponto de fidelização. Seu carrinho totalizará 1 ponto que podem ser convertidos num vale de desconto de 0,20 €.
Ajustável dos 0-99.9s (ajustável 0.1s)
Ajustável dos 0-999 minutos (ajustável 1 minuto)
specs do fabricante:
Features:
Achieve high-frequency fast frequent on-off circuit.
On-off process does not produce noise.
No spark.
No electromagnetic interference.
Long life than conventional electromagnetic relay life. Often used to control motors, light bulbs, LED lights, DC motors, miniature pumps, solenoid valve.
The use of opto-isolated input and output, enhanced anti-jamming capability power, ensure stability, industrial grade board, class PLC, after setting the parameters of power and can never remember, the signal terminal voltage signal can be maintained for a long time.
Delay of one second every time there is an adjustable 0-999 seconds 0-99.9 seconds, adjustable 0.1 seconds, 1 minute adjustable 0-999 minutes, customers can easily switch time range and size, power saving Delay time of the last set, without duplication.
Specifications:
Output capacity: DC 5-30V DC
Maximum current: 20A is greater than the need to add heat sink 5A
Quiescent Current: 20 mA
Working Current: 50mA
Operating Voltage: DC DC 5-30V (common universal operating voltage 9V 12V 24V)
Signal voltage: DC DC4V-27V (common power supply positive trigger, or button, PNP sensors, PLC signals, etc.)
Life: unlimited switch Operating temperature: -40-85C
Color: blue
Size: 65mm * 40mm * 14mm
Net weight: 20.4g
Verifique com imagens e referências.
Qualquer esclarecimento adicional, consulte-nos.
