Material DiversoModulo termostato 12V rele e sonda a prova de aguaModulo termostato 12V rele e sonda a prova de agua
Ao comprar este produto pode ganhar até 1 ponto de fidelização. Seu carrinho totalizará 1 ponto que podem ser convertidos num vale de desconto de 0,20 €.

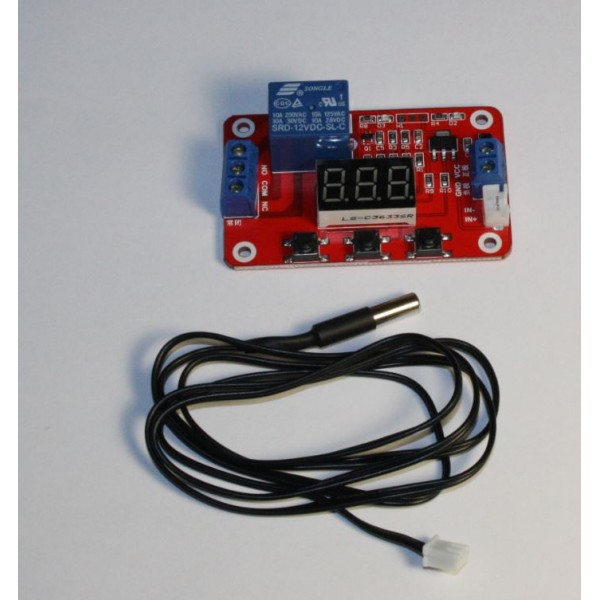

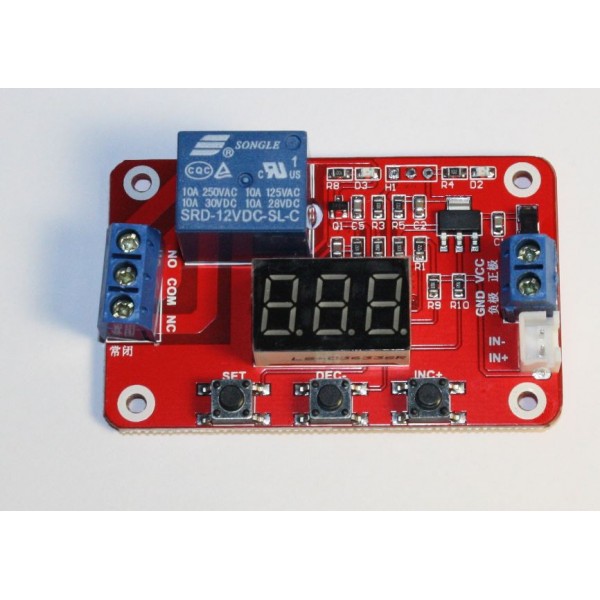

Modulo Termostato 12V rele -20ºC -100ºC à prova de água
Descrição do fabricante:
Temperature Control Range: -20-100ºC
Resolution Ratio: -9.9~99.9: 0.1ºC, other temperature is 1ºC
Temperature Measurement Accuracy: 0.1ºC
Control Accuracy: 0.1ºC
Return Difference Accuracy: 0.1ºC
Refresh Rate: 0.5 S
Input Power Supply: DC 5V, DC 12V, DC 24V
Measuring Inputs: NTC(10K 0.5%)waterproof sensor
Output: 1 channel relay output, capacity =20A 125VAC,20A 14VDC
Environmental Requirement: -10~60ºC, humidity: 20%-85%
Size: Approx. 48.5 x 40mm / 1.9 x 1.5 inch
Overall Power Consumption: Quiescent current: =10MA, operating current =65MA
Indicator Light Direction: Flash shows start-up delay of refrigeration or heating, keep lighting shows the relay has closed
Nixie Tube: LL state shows open for sensor; please connect the sensor base on instruction, HH state shows exceed measurement range, temperature controller would peremptory turn off the relay, --- state shows high temperature alarm
Verifique com as imagens e referências.
Qualquer esclarecimento adicional, consulte-nos.
CX23
