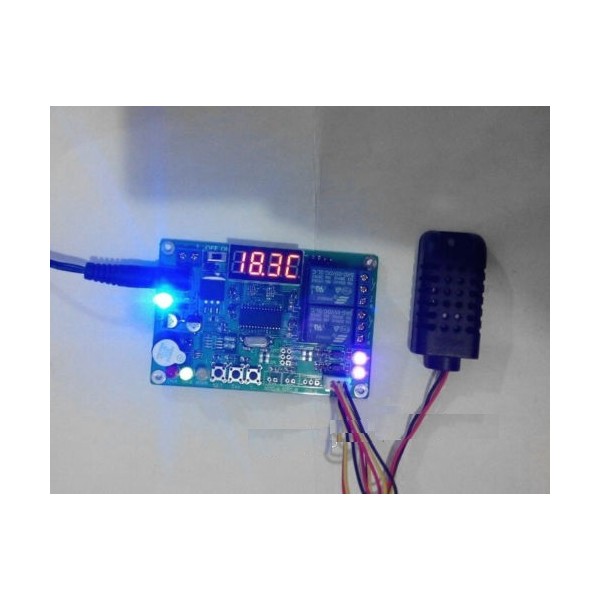

Modulo 5 a 24V Higrómetro e temperatura 2 reles + sensor

Modulo 5 a 24V Higrómetro e temperatura 2 reles + sensor

Permite accionar rele em cargas DC ou AC com temperatura individual da humidade

Função de aquecimento , refrigeraçao , humidificador ou desumidificador



Mais detalhes

TCMATD0039

1 Item disponível

Aviso: Últimos itens disponíveis!

27,45 €

Ao comprar este produto pode ganhar até 2 pontos de fidelização. Seu carrinho totalizará 2 pontos que podem ser convertidos num vale de desconto de 0,40 €.


Modulo 5 a 24V Higrómetro e temperatura 2 reles + sensor

Permite accionar rele em cargas DC ou AC com temperatura individual da humidade

Função de aquecimento , refrigeraçao , humidificador ou desumidificador

Specs do fabricante:

1, With four operating modes, dehumidification / heating; humidification / heating; dehumidification / cooling; humidification / cooling.

2, Which can detect and display the temperature and humidity.
3, The power automatically read the set temperature, humidity, and temperature and humidity mode difference.
4. Dual 250V 10A relay quality control (can be used to control the peripheral load, such as: heating, cooling)
5, Power is automatically stored setting parameters (MCU built-in EEPROM memory cell)
6, Humidity hysteresis setting 0.0 onwards, step 0.1% (0.0-20.0)
7, Temperature hysteresis setting 0.0 onwards, step 0.1 degrees Celsius (0.0-20.0)
8, Wide input voltage range can DC5-24V
9. Highlight four red LED display, with degrees C and humidity H symbol symbol
10. Support temperature monitor mode, to avoid temperature extremes cause accidents.

Product parameters:

Number of Channels: Dual
Sensors: DHT11 Digital Temperature and Humidity SensorHumidity
measurement range: 20%~90%RH
Temperature measuring range: 0~ 60 ℃
Temperature resolution: ±2 ℃
Humidity Resolution: ±5%RH
Output drive capability: 10A, 250V Dual
Power supply voltage: 5-24V DC 0.5A
Display: 0.36-inch 4 digital tube
Auxiliary display module: red - yellow - green LED, auxiliary instruction set parameters
Input: touch of a button
Accessibility: Each relay is closed off with a purple LED indication. State switch alarms.
Size: 94 * 62 * 20mm, positioning holes: 88 * 56mm, M3
Weight: 80g
Wiring Description: Supply side: + is positive, - is negative (plugged in the power cord, switch to the right), you can also directly powered directly by DC power cord.
Outputs: relay output with dual output graphics interface label: the middle is the common terminal, graphics connector is normally closed, the other end is normally open.

Boot process:

Connect the power supply and equipment, the controller can supply (5-24V power supply)
The controller automatically reads the stored parameters
Then displayed the preset temperature value A, red LED flashes 3 times (LED1).
Then displays the preset humidity value B, blue LED flashes 3 times (LED2).
The last display mode, the yellow LED flashes 3 times (LED3).
After displaying the measurement of temperature and humidity
Temperature and humidity are displayed in turn,

1:temperature display XX.XC, LED1 bright, the other off;
2: humidity display XX.XH, LED2 light, other off.

Parameter settings:

Press the SET button, LED1 starts flashing, the display shows the set temperature A, press T ++ T-- to set the desired temperature A. Display template xx.xCPress the SET button, LED1 starts flashing display shows the set temperature A return difference, according to T ++ T-- A return to the set temperature difference. Display template H x.xTemperature setting, waiting 3S or press the SET to enter the humidity settings.Press the SET button, LED2 starts flashing display settings humidity B, according to T ++ T-- to set the desired humidity B. Display template xx.xHPress the SET button, LED2 starts flashing display settings back to the difference between B and humidity, according to T ++ T-- B back to set the humidity difference.
Display template L x.xHumidity setting is completed, press the SET button or wait 3S into working mode setting.Press the SET button, LED3 starts blinking, display mode, press the T ++ T-- to set the operating mode
Mode 1: heating / humidification
Mode 2: heating / dehumidification
Mode 3: cooling / humidification
Mode 4: cooling / dehumidificationDisplayed as PP x. All parameters can be saved automatically.Press the SET button to exit the setting, LED all off, shows the actual measurements of temperature and humidity, then the system automatically saves parameter settings, work began to enter the corresponding mode.

Special Note:

After SET, T ++, T-- key settings, without any keystrokes within 4s, the system will automatically save the current parameter settings, and then shows the measured temperature and enter the working mode. Long press the button, the key is automatically increased.Work Mode Description:Mode 1: heating / humidification

When the temperature is below the set temperature A, the relay JQ1 closes and accompanied indicator A light. When the temperature> set temperature A + A temperature difference, the relay JQ1 off, lights off A.

When the humidity is below the set humidity B, the relay JQ2 closes and accompanied indicator B light. When the humidity is> set humidity B + B humidity difference, relay JQ2 off, lights off B. Mode 2: heating / dehumidification

When the temperature is below the set temperature A, the relay JQ1 closes and accompanied indicator A light. When the temperature> set temperature A + A temperature difference, the relay JQ1 off, lights off A.

When the humidity is above the set humidity B, the relay JQ2 closes and accompanied indicator B light. When the humidity <set humidity B - B humidity difference,  JQ2 disconnect relay, indicator B is off.Mode 3: cooling / humidification       When DS1 temperature is higher than the set temperature A, the relay JQ1 closes and accompanied indicator A light. When DS1 temperature <set temperature A - A temperature difference, relay JQ1 disconnect , indicator A is off .

When the humidity is below the set humidity B, the relay JQ2 closes and accompanied indicator B light. When the humidity > set humidity B + B humidity difference, relay JQ2 disconnect, indicator B is off. Mode 4: cooling / dehumidification

When DS1 temperature is higher than the set temperature A, the relay JQ1 closes and accompanied indicator A light. When DS1 temperature <settemperature A- A temperature difference, relay JQ1 disconnect , indicator A is off .

When the humidity is above the set humidity B, the relay JQ2 closes and accompanied indicator B light. When the humidity <set humidity B - B humidity difference , relay JQ2 disconnect , indicator B is off.
