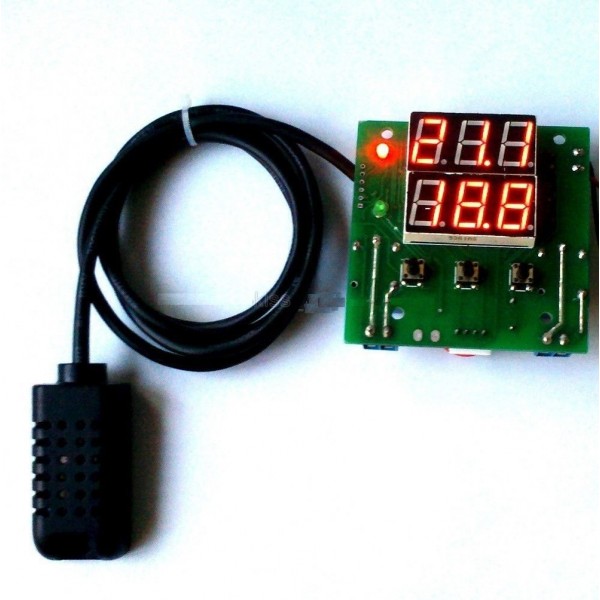

Modulo 12V Higrómetro e temperatura Dual display LED 2 reles + sensor

Modulo 12V Higrómetro e temperatura 2 reles + sensor

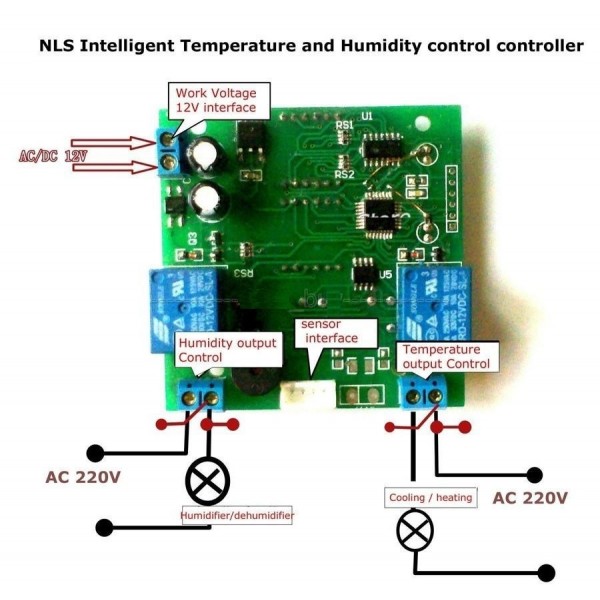

Permite accionar rele em cargas DC ou AC com temperatura individual da humidade

Dual display LED

Função de aquecedor , arrefecimento, humidificador ou desumidificador

Descrição do fabricante:

1. Temperature measurement range: 0 to 80 ° C

2. Humidity measurement range: 0% RH to 99.9% RH

3. The temperature resolution is 0.1 ° C, humidity resolution is 0.1% RH

4. Working voltage: DC12V or AC12V

5. With the function of power parameters memory protection

6. Size: 7 cm x 7 cm x 3 cm

Setting Instruction

Character Definition：
S01: Start temperature setting Symbol
S02: Stop temperature setting Symbol
SC1: temperature correction value is set symbol
S03: Start humidity settings symbol
S04: Stop sign humidity settings
SC2: humidity correction value is set to sign


Setting method

Press Setting key for 3 seconds to enter the parameter setting menu, set the following:

1.Set start temperature "SO1", by setting plus and setting less (shift function) into the settings, press the function key to complete the set
(Such as setting 23.4 degrees, enter the setup menu, decimal blinks, press the Set button will subtract decimal places is set to 4, then set plus the shift to a position flashes, press the minus key bits set to 3, then press set on ten plus shift to blink, press the Set button will subtract ten set to 2, and finally press the function key to save)

2.Set stop temperature value "SO2" (the same way as SO1),

3.Set temperature correction value "SC1", by setting plus and setting less (shift function) into the settings, press the function key to complete the set

4.Set start humidity settings "SO3" (the same way as SO1),

5.Set stop humidity value "SO4" (set the same way as SO1),

6.Set humidity correction setting values "SC2", by setting plus and setting less (shift function) into the settings, press the function key to complete the set

Setting examples

1, temperature of 50.5 degrees energized, 45.5 degrees off

The SO1 Set 50.5, SO2 set to 45.5.

2, temperature of 45.5 degrees energized, 50.5 degrees off
The SO1 Set 45.5, SO2 is set to 50.5.

3, humidity 50.5 %RH conduction, 45.5 %RH off
SO3 is set to 50.5, SO4 set to 45.5.

4, humidity 45.5 %RH conduction, 50.5 %RH off
SO3 is set to 45.5, SO4 set to 50.5.
Note: If the display "--.-" Please check whether the sensor is open or damage the sensor, t, then the meter automatically starts protection function, the load is powered off, you need to troubleshoot
After re-use only.

Verifique com imagens e referências.
Qualquer esclarecimento adicional, consulte-nos.
