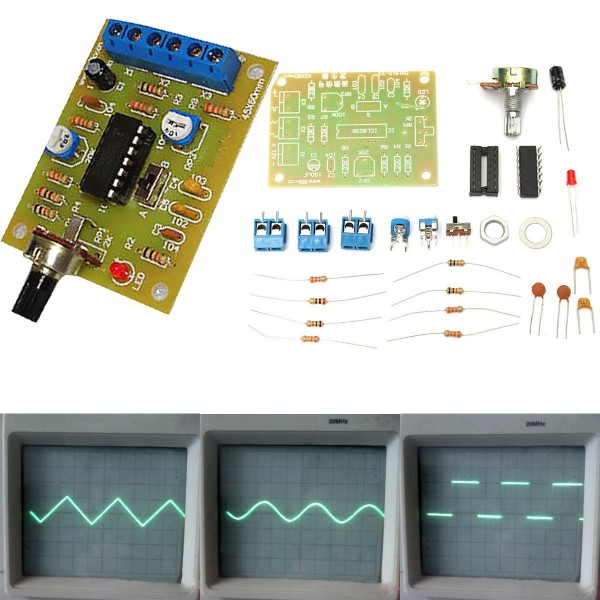

Kit de Eletrónica Gerador de Funções / Sinais ICL8038 para Testes
Ao comprar este produto pode ganhar até 1 ponto de fidelização. Seu carrinho totalizará 1 ponto que podem ser convertidos num vale de desconto de 0,20 €.
Kit DIY DSO138 osciloscopio digital TFT 2.4"...
----REQUER MONTAGEM e o mínimo de conhecimentos ---
Modelo: ICL8038
Voltagem: 12V
Frequencia: 50 - 5KHz
Tamanho: 6x4.5x0.2cm
O kit contem:
ICL8038 pin functions:
1 foot, 12 foot: sine waveform adjusting terminal;
2 foot: sine wave output;
3 foot: triangle wave output;
4 foot, 5 foot: the frequency and duty cycle (or waveform asymmetry) adjustment;
6 foot: V +, the positive power supply;
7 foot: offset; 8 foot: frequency adjustment input terminal;
9 foot: square wave output.
This is an open collector output terminal, work should take a load resistor to the corresponding positive power supply terminal from the pin, to get a TTL-compatible square-wave output, the load resistance must be connected to + 5V power supply;
10 foot: timing capacitor terminal;
11 foot: V-, negative power supply terminal or the ground. Use positive and negative power supply, 11 feet to the negative supply, the output waveform are symmetrical with respect to 0V; use a single positive power supply, 11 feet grounded, the output waveform is unipolar, uniform voltage is + VCC / 2;
13 feet, 14 Feet: Empty foot.
The kits are designed for a frequency range is 50-5KHz, two bands with a switch S to switch, RP1 is the frequency adjustment, RP2 is the duty cycle adjustment, RP3 is a sine wave distortion adjustment. Circuit uses 12V single power supply, input from the X1; X2, X3 is a waveform output side, you can use oscilloscope to observe three output waveforms.
Verifique com imagens e referências.
Qualquer esclarecimento adicional, consulte-nos.
